Product Details:
Payment & Shipping Terms:
|
| Name: | Bath Steam Generator | Material: | Stainless Steel |
|---|---|---|---|
| Function: | Wet Steam | Color: | Black |
| Voltage: | 110V - 400V | Power: | 3kw - 24kw |
| Heating Type: | Electric | Usage: | Home Use / Commercial Use |
| Certificate: | CE / FCC | Warranty: | Two Years |
A. Made of 100% non-toxic stainless steel.
B. Waterproof TOUCH screen controller.
C. Auto water inlet + Auto draining + Auto flushing.
D. Multiple safety protection.
E. Easy operation and maintenance.
F. Long warranty period as TWO years.
Different powers of steam generators suit for different size of steam rooms,
please choose the most suitable one.
| Model | Power | Room volume (Cubic meter) | Voltage | Dimensions |
| TOLO-30 | 3KW | 2 - 4 | 220V/single phase |
42.5*15.5*31.5 (centimeters) Or 16.8*6.1*12.4 (Inch) |
| TOLO-40 | 4KW | 3 - 5 | ||
| TOLO-45 | 4.5KW | 3.5 - 5.5 | 400V/3 phase or 220v/single phase | 47.6*18.0*44.9 (centimeters) Or 18.8*7.1*17.7 (Inch) |
| TOLO-50 | 5KW | 4 - 6 | ||
| TOLO-60 | 6KW | 5 - 7 | ||
| TOLO-70 | 7KW | 5.5 - 8.5 | ||
| TOLO-75 | 7.5KW | 6 - 9 | ||
| TOLO-80 | 8KW | 7 - 10 | ||
| TOLO-90 | 9KW | 8 - 11 | ||
| TOLO-105 | 10.5KW | 9 - 12 | 400V/ 3 phase | 50.9*18.0*46.0 (centimeters) Or 23.1*7.1*18.1 (Inch) |
| TOLO-120 | 12KW | 11 - 14 | ||
| TOLO-150 | 15KW | 13 - 18 | ||
| TOLO-165 | 16.5KW | 15 - 20 | ||
| TOLO-180 | 18KW | 16 - 22 | ||
| TOLO-225 | 22.5KW | 21 - 28 | ||
| TOLO-240 | 24KW | 22 - 30 |
Basic Functions
Autowater inlet + Auto draining + Auto flushing + Auto power off + Overheat protection + Time & Temperature setting
ONLY TWO STEPS you need to do:
A. Open the steam generator by the "ON/OFF" switch on the controller
B. Change or using the last time's settings about time, temperature, humidity.
And this step can also be unnecessary as it can remember your last time settings.
All these setting can be done on iPhone / iPod/ iPad if you have installed our wifi device.
Time seting: arrange from 1-60 minutes or continues
Temperature setting: 35~60 centigrade(95~131 Fahrenheit ) of the steam room
Humidity setting: arrange from 60%-99%
Double Safety Protection
A. Heat preservation, if the room temperature is 2 ℃ over you setting, then all the heating element stop working.
When the room temperature back to your setting arrange, it start to work automatically.
B. Overheat protection, if the the temperature of the inner water tank over 115℃, the steam generator will stop working.
Multiple Cleaning Setting
A. Auto draining. When setting time is over or ON/OFF button is pressed, system will drain automatically.
B. Auto flushing. After draining, the system will automatically fill in water to wash and cool down the inner tank
and heating elements. And then auto draining, repeat three times, thorough cleansing.
C. Auto descaling. There's a service hole on the top of the steam generator, auto descaling device can be installed.
Precontract mode is supported, do not need to descaling everytime.
Descaling can extend the steam generator's serving life.
Standard Materials
Housing/ Shell : Stainless steel 201
Water Tank : Stainless steel 304

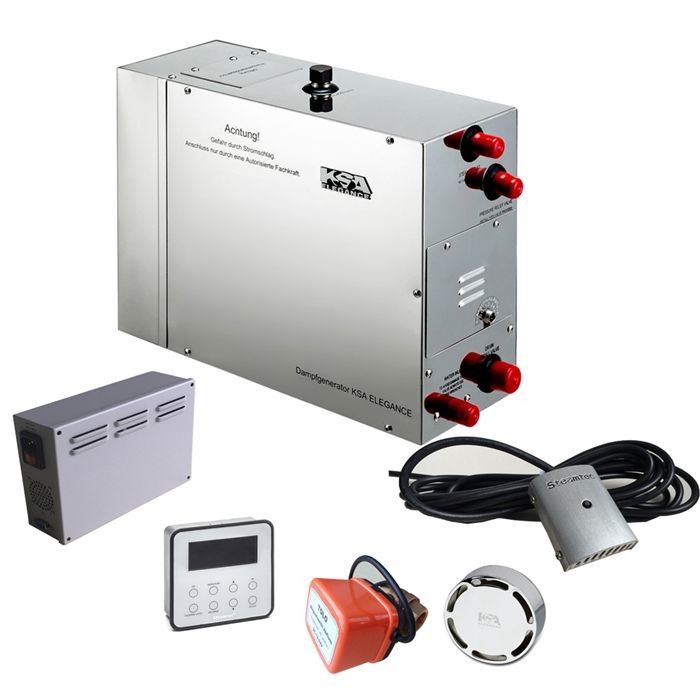

Standard Accessories
Steam generator +Function device + Controller + Auto draining valve + Steam head +Temperature sensor

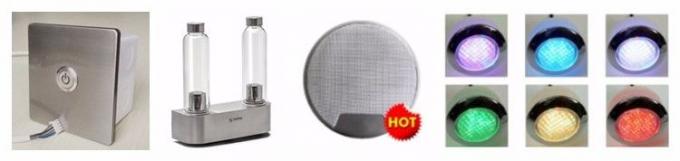

Optional Functions
Below optional functions need extra accessories to carry out, you can free to chose one or more of them.
And anytime to add those extra accessories is workable.
| Fast steam | Steam out in 30 seconds |
| Aroma pump | Aromatherapy essential oils add a pleasant, calming effect |
| Colour light | 6pcs Led lights, color can changed by controller/ iPhone |
| Music system | 1 pair waterproof speaker, Bluetooth controlled |
| Salt atmosphere generator | Salt bath help release asthma & clean & whiten & moisturize the skin, etc |
| Auto Descaling device | Don't need to worry about scale anymore |
| Wifi control system | It's available to control by iPhone |
| Exhaust fan | Dry the steam room, can controlled by controller/iphone |
| Water processor | Reduce water scale, to extend the life of machine. |

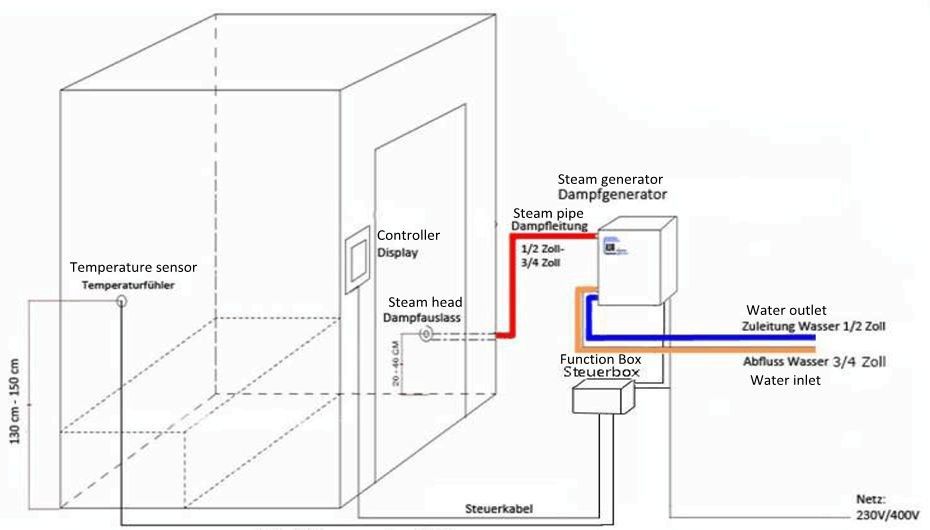

How to Install the Steam Generator
Quite easy, there's an English manual together with the product.
The Steam generator can be installed in the roof, in the closet, under the washing basin, in the basement or other places.
And bucause of its stainless steel housing, the steam generator has a strong rust prevention capability.
