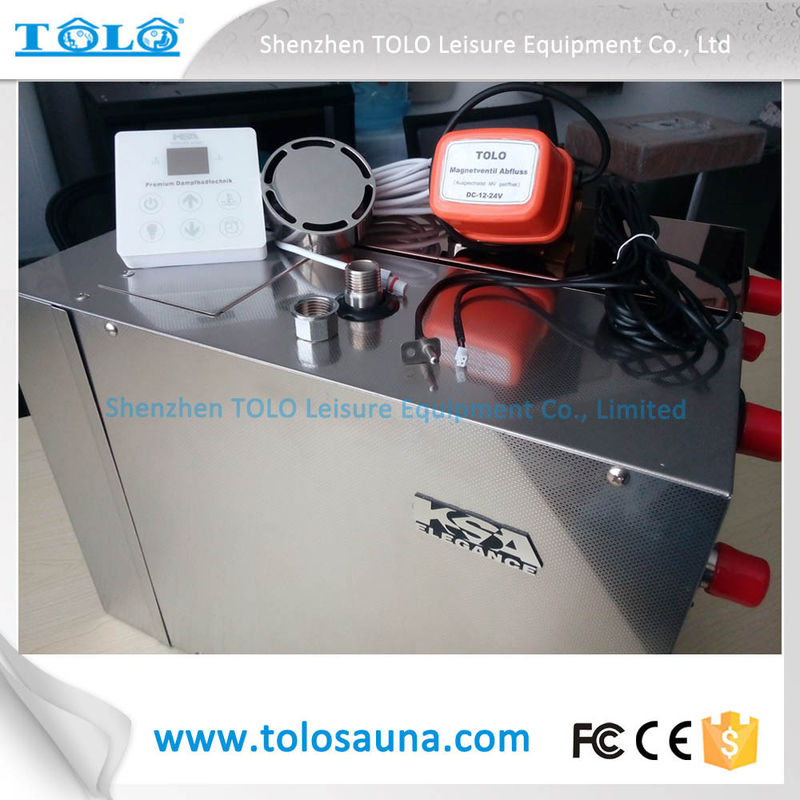

Bathroom Sauna Steam Bath Generator 9kw 400v 3 Phase High Performance

Bathroom Sauna Steam Bath Generator 9kw 400v 3 Phase High Performance

Quick Detail:

1. Type: Wet Steam Sauna
2. control panel: digital and optional
3. Power output: 9.0kw
4. voltage: 380V~400V
5. Main Material: stainless steel tank, galvanizing and powder coated shell
6. Color: grey green
7. Current: 13.6A
8. phase: 3
9. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
10. Auto function: auto water inlet , auto drain, auto flushing, auto power off
11. Shape: Cuboid
12. Size: 475*185*450mm
13. Room volume(cubic meter): 8~11
14. Usage: steam sauna room
15. working time: 1~60 minutes or long time
16. Heating: heat elements
17. Power source: Electric
18. Time Setting: 1-60mins
19. Temperature range to control: 95 F degree~131 F degree
20. Temperature range to show on control panel: 43 F degree ~140 F degree

Steam out right along steam generators 9.0kw/400v /3phase with auto turn off for Turkish bath

3 Phase Sauna Steam Generator 9kw 400v for 8~11 cubic meter

Choose our products will help you create a good image.

1. body made from aluminum with perfect flame plating.
2. water tank is stainless steel to prevent rust and keep service life.
3. multifunction controller makes you feel easy to operate.
4. main feature : A. steam out right long when cold water fill in

                  B. Auto turn off when reaches working time.

                  C. Auto drain after power off

                  D. self flushing heating element

                  E. Intelligent to indicate fault with code

                  F. Protect when overheating

                 G. Auto power off when shortage of water

                 H. intelligent to protect when overpressure of water tank

                 I. Have pause function

Description:

This KSA-E series steam generator is our featured products.

It is born in 2008. After years of test, it is steady performance.

You don’t need to spend a lot of time to solve the problems like a new product.

What you can get is “Save Worry Save Trouble”!

1. Our KSA-E steam generators is automatic drain with a self flushing cycle to dump the boiler contents in a controlled manner - at the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the heating elements.
Electronic controls with a digital display to enable temperatures of 6 to 60℃ and time duration 1 to 60 min or continual operation .

The electronic control with on board diagnostics having a series of LEDs to show each operation of the steam generator. Each generator is fitted with 3 banks of heating elements to provide sequential heating (from cold all 3 banks operate for maximum power and rapid heating, when the steam room temperature is almost reached bank 1 stop, when the required temperature is achieved, bank 2 stop, then bank 3 alternates on and off to gently maintain the temperature without large fluctuations improving user comfort).


What’s steam bath?

A steambath is an ancient type of bath, first made popular by the ancient Greeks and Romans. The origins of the steam bath come from the Roman bath, which began during the height of the Roman Empire. Ancient Roman baths served many community and social functions within Roman society. Everyone in Rome used Roman public baths, regardless of socioeconomic status.

Applications:

For 8~11 cubic meter residential and commercial steam baths

A daily steam bath is a remarkable way to indulge yourself. It causes the perspiration that is the single healthiest thing you can do for your skin. Stress and negativity quickly dissipate in the soft clouds of intense yet comforting heat. A few minutes of steam daily, in the comfort of your own home, is an opportunity to improve your overall well-being in every way.

Parameters:

1. Control panel with Digital display
2. Control panel used the advanced inducing technology
3. Controls sauna temperature 35 degree to 55 degrees
4. Controls sauna time 1 minute to 60 minutes or long time
5. Intelligent to heat by segment
6. Intelligent to fill water with steam
7. Intelligent to do a self flushing cycle
8. Light can be connected to controller
9. Intelligent to indicate fault with the code
10. Can pause at working
11. To show CH can working for long
12. Intelligent to save two sets of temperature, can individual set time by memory
13. Automatically shuts down when water level is too low
14. Temperature high limit switch
15. Waterproof grade: IPX5
16. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
17. Auto function: auto water inlet , auto drain, auto flushing, auto power off

          We will provide some spare parts to our customer as replacement.

KSA-E90

Competitive Advantage:

1. Intelligent to save two sets of temperature, can individual set time by memory
2. Light can be connected to illumine, water inflow to magnetize and filtrate etc.
3. Intelligent to heat by segment, fill water with steam, automatic to turn off and wash , with pressure to drain.
4. To show CH can working for long
5. Intelligent to indicate fault
6. Have pause function
