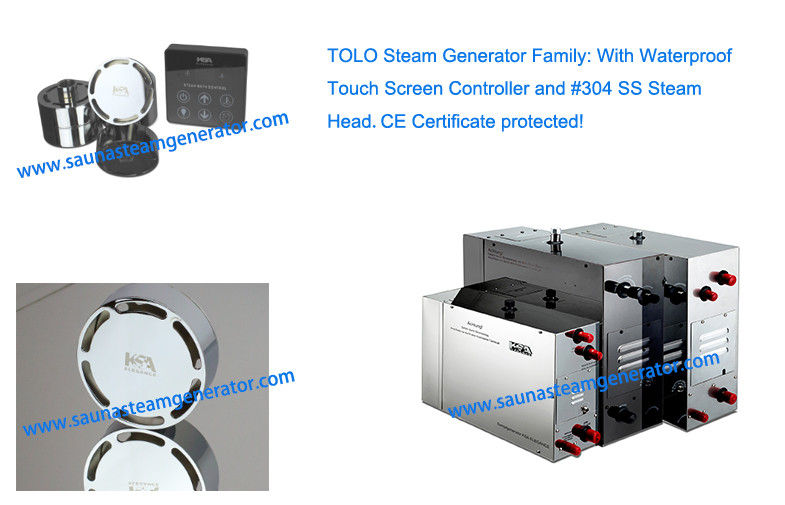

Digital Sauna Steam Generator Stainless Steel 12kw 380v For Home Fast Response

China Digital Sauna Steam Generator Stainless Steel 12kw 380v For Home Fast Response supplier

Large Image :  Digital Sauna Steam Generator Stainless Steel 12kw 380v For Home Fast Response

Product Details:

Place of Origin: China
Brand Name: KSA
Certification: CE
Model Number: KSA-E90

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 1 set/carton
Delivery Time: 1-3 workdays
Payment Terms: T/T, Paypal, Western Union,
Supply Ability: 1800 sets
Detailed Product Description



Digital Sauna Steam Generator Stainless Steel 12kw 380v For Home Fast Response





Quick Detail:


  1. Type: Wet Steam Sauna
  2. control panel: digital and optional
  3. Power output: 12.0kw
  4. voltage: 380V~400V
  5. Main Material: stainless steel tank and shell
  6. Color: stainless steel
  7. Current: 18.2A
  8. phase: 3
  9. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  10. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  11. Shape: Cuboid
  12. Size: 475*185*450mm
  13. Room volume(cubic meter):11~14
  14. Usage: steam sauna room
  15. working time: 1~60 minutes or long time
  16. Heating: heat elements
  17. Power source: Electric
  18. Time Setting: 1-60mins
  19. Temperature range to control: 95 F degree~131 F degree
  20. Temperature range to show on control panel: 43 F degree ~140 F degree



Heat element material: stainless steel 304, 6pcs 2.0kw

Shell material: stainless steel 304

Water tank material: stainless steel 304

Power: 12.0kw

Room volume use: 11~14 cubic meter

Recommend features: auto drain, auto turn on/ turn off, auto pressure relief, auto cut out when over heat



Digital and optional Sauna Steam Generator stainless steel 12kw 380V for home



Description:



  1. Controls sauna temperature
  2. Temperature high limit switch
  3. With cleaning and draining function
  4. Power:120kW, voltage: 220/380V, phase:1/3
  5. Two controllers: KSA-elegance
  6. Operates machine for 1~60 minutes before turning off
  7. Automatically shuts down when water level is too low
  8. High quality with 2-year warranty
  9. Our 16 years experience will help you make the business easily. “Save Worry Save Trouble”!





Applications:



Fit for home use and commercial use

Make you more healthy!





Specifications:



boil dry protection stainless steel steam generators KSA-E120 12.0kw/400v/3phase with auto drain function for home and commercial use  :

  1. Control panel with Digital display
  2. Control panel used the advanced inducing technology
  3. Controls sauna temperature 35 degree to 55 degrees
  4. Controls sauna time 1 minute to 60 minutes or long time
  5. Intelligent to heat by segment
  6. Intelligent to fill water with steam
  7. Intelligent to do a self flushing cycle
  8. Light can be connected to controller
  9. Intelligent to indicate fault with the code
  10. Can pause at working
  11. To show CH can working for long
  12. Intelligent to save two sets of temperature, can individual set time by memory
  13. Automatically shuts down when water level is too low
  14. Temperature high limit switch
  15. Waterproof grade: IPX5
  16. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  17. Auto function: auto water inlet , auto drain, auto flushing, auto power off

           We will provide some spare parts to our customer as replacement.





Please see the details for your installment reference:



Model

Power KW

Room volume (m³)

Power requirements           50/60Hz

Current (A)

Power        wire (Copper)          N*mm2

Dimensions  CM

Packing dimensions CM

Gross weight kg

KSA-E120

12.0

11~14

380-415V3N~

18.2

5*4

51*18.5*46

56.5*23*59

17.5~18.5



KSA-E120





Competitive Advantage:



Our quality control is strict. It contains operational test of every steam generator before packing, power test, earthing resistance test, high voltage test,  controller is tested for all functions and 48 hour continual test for circuit board.
