Automatic Portable Sauna Steam Generator Wet Steam 16 kw 3 Phase

China Automatic Portable Sauna Steam Generator Wet Steam 16 kw 3 Phase supplier

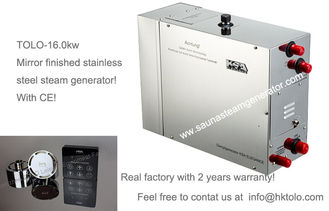

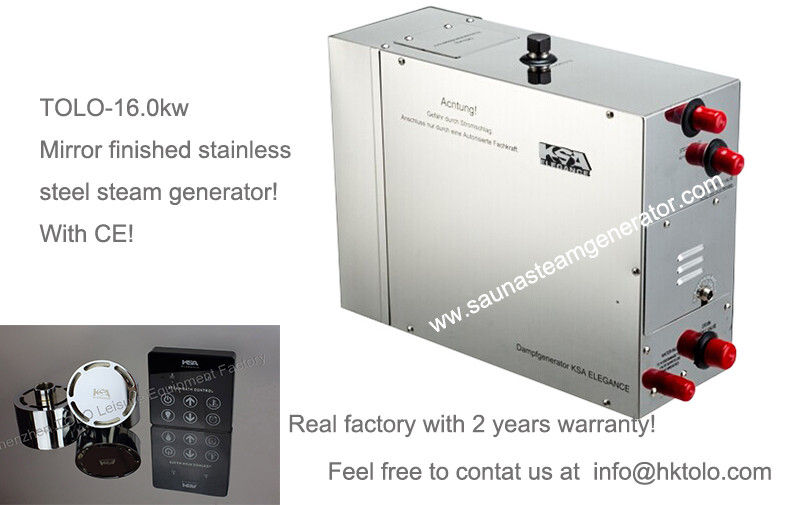

Large Image :  Automatic Portable Sauna Steam Generator Wet Steam 16 kw 3 Phase

Product Details:

Place of Origin: China
Brand Name: KSA
Certification: CE
Model Number: KSA-E160

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 1 set/carton
Delivery Time: 1-3 workdays
Payment Terms: T/T, Paypal, Western Union,
Supply Ability: 1800 sets
Detailed Product Description

Automatic Portable Sauna Steam Generator Wet Steam 16 kw 3 Phase







Quick Detail:



  1. Type: Wet Steam Sauna
  2. control panel: digital
  3. Power output: 16.0kw
  4. voltage: 380V~400V
  5. Main Material: stainless steel tank, galvanizing and powder coated shell
  6. Color: grey green
  7. Current: 23.5A
  8. phase: 3
  9. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  10. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  11. Shape: Cuboid
  12. Size: 475*185*450mm
  13. Room volume(cubic meter): 14~19
  14. Usage: steam sauna room
  15. working time: 1~60 minutes or long time
  16. Heating: heat elements
  17. Power source: Electric
  18. Time Setting: 1-60mins
  19. Temperature range to control: 95 F degree~131 F degree
  20. Temperature range to show on control panel: 43 F degree ~140 F degree



  • Exclusive microprocessor operating system
  • Precision temperature probe for optimal steamroom temperature control
  • Removable and serviceable industrial strength heating elements
  • We produce steam generator over 10years! Intelligent to heat by segment, fill water with steam, automatic to turn off, a self flushing cycle ,with pressure to drain.
  • Intelligent to indicate fault with the code.
  • To show CH can working for long
  • Can pause at working
  • Light can be connected to controller, water inflow to magnetize and filtrate etc.
  • Intelligent to save two sets of temperature, can individual set time by memory





Description:



“Save Worry Save Trouble”!



This series is born in 2008. After years of test, it is steady performance.

You don’t need to spend a lot of time to solve the problems like a new product.

This KSA-E series steam generator is our featured products.



1. Fast steam: With the special and delicate design of the system, a large volume of steam will come out within 5 minutes after the heating elements begin to work, and quickly boosts the temperature to the setting value. The intelligent heating-by-section makes heating process more efficient and minimizes the energy used, more importantly, non-stop steam generation is ensured even during the water tank filling period.

2.  Multi-protection. Besides the GFCI (Ground Fault Circuit Interrupter ), the KSA-E series also installed the following protection circuits: over-heat protection; lack-of-water protection; over-pressure protection, assisted by the newest microprocessor technology to give automatic diagnose message in order to give customer maximum level of safety and easy trouble-shooting when any fault happens.

3. As professional we could tell you that the decisive fact for a steam generator is actually the quality of the heating elements rather than functions. Therefore we choose the best magnesian powder, 304# stainless steel, and seal glue to guarantee a durable product. We also oxidize the heating elements surface with Teflon . More importantly, the advanced automatic washing, cooling and draining functions minimize the conglomeration of calcium and magnesium on the heating element so as to greatly extend the life of heating elements.

4. To install water magnetizing filter impurity, or pressure reducer to reduce the inlet water pressure, or external light according to customer requirements.





Applications:



Fit for home use and commercial use

Make you more healthy!





Specifications:



1) Power:160kW, voltage: 220/380V, phase:3
2) controllers: KSA-elegance
3) Operates machine for 1~60 minutes before turning off
4) Automatically shuts down when water level is too low
5) Temperature high limit switch
6) With cleaning and draining function
7) High quality with 2-year warranty





Please see the details for your installment reference:



Model

Power KW

Room volume (m³)

Power requirements           50/60Hz

Current

(A)

Power        wire (Copper)          N*mm2

Dimensions  CM

Packing dimensions CM

Gross weight kg

KSA-E160

16.0

13~18

380-415V3N~

22.7

5*2.5

51*18.5*46

56.5*23*59

17.5~18.5





KSA-E160



  1. Control panel with Digital display
  2. Control panel used the advanced inducing technology
  3. Controls sauna temperature 35 degree to 55 degrees
  4. Controls sauna time 1 minute to 60 minutes or long time
  5. Intelligent to heat by segment
  6. Intelligent to fill water with steam
  7. Intelligent to do a self flushing cycle
  8. Light can be connected to controller
  9. Intelligent to indicate fault with the code
  10. Can pause at working
  11. To show CH can working for long
  12. Intelligent to save two sets of temperature, can individual set time by memory
  13. Automatically shuts down when water level is too low
  14. Temperature high limit switch
  15. Waterproof grade: IPX5
  16. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  17. Auto function: auto water inlet , auto drain, auto flushing, auto power off

           We will provide some spare parts to our customer as replacement.





Competitive Advantage:



We do rigorous quality control:
    1. Operational test of every steam generator before packing
    2. Power test.
    3. Earthing resistance test
    4. High voltage test
    5. Controller is tested for all functions
    6. 48 hour continual test for circuit board







To enquire about any of the sauna and steam products that we offer please feel free to contact me at info@hktolo.com.
