Touch screen digital Sauna Steam Generator automatic with 6kw 230v

China Touch screen digital Sauna Steam Generator automatic with 6kw 230v supplier

Large Image :  Touch screen digital Sauna Steam Generator automatic with 6kw 230v

Product Details:

Place of Origin: China
Brand Name: KSA
Certification: CE
Model Number: KSA-S60

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 1 set/carton
Delivery Time: 1-3 workdays
Payment Terms: T/T, Paypal, Western Union,
Supply Ability: 1800 sets
Detailed Product Description



Touch screen digital Sauna Steam Generator automatic with 6kw 230v





Quick Detail:



  1. Type: Wet Steam Sauna
  2. control panel: touch screen digital and optional
  3. Power output: 6.0kw
  4. voltage: 220~240V/380~400V
  5. phase: 1/3
  6. Current: 27.3A/9.1A
  7. Main Material: stainless steel tank and Mirror-polished stainless steel shell
  8. Color: stainless steel
  9. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  10. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  11. Shape: Cuboid
  12. Size: 405x150x280mm
  13. Room volume(cubic meter):5~7
  14. Usage: steam sauna room
  15. working time: 1~60 minutes or long time
  16. Heating: heat elements
  17. Power source: Electric
  18. Time Setting: 1-60mins
  19. Temperature range to control: 95 F degree~131 F degree
  20. Temperature range to show on control panel: 43 F degree ~140 F degree





Thermal overload safety cut out is one of the host advantages of KSA-S steam generators.

Mirror-polished stainless steel shell luxurious appearance! They have 304 stainless steel water tanks, 304 stainless steel heating element with high quality Teflon to prevent water scale.

KSA-S steam generators have middle size to install easily.





Touch screen digital Sauna Steam Generator automatic 6kw 230v



Description:

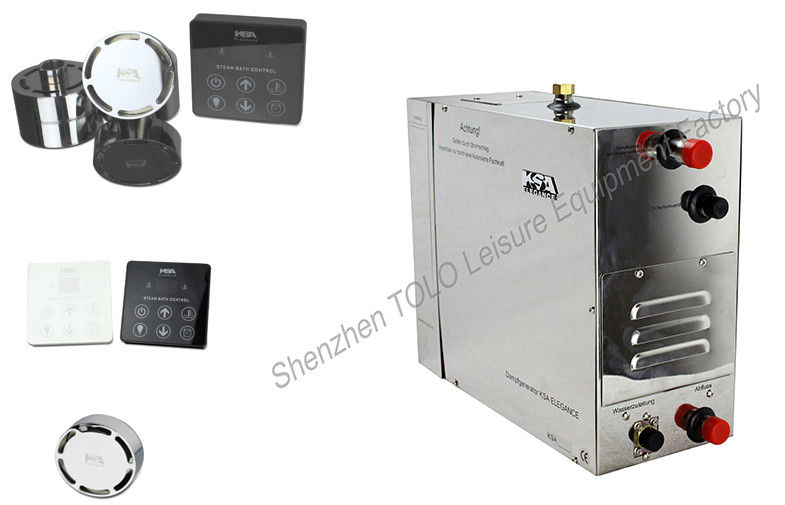

1 set steam generator contains: 1 unit KSA-S 6.0kw steam generator mirror-polished stainless steel shell and full sus body

                                 1 unit KSA elegance touch screen control kit

                                 1 unit mirror-polished stainless steel steam head

                                 1 unit safety valve

                                 1 unit temperature sensor

                                 1pcs control wire



Heat element material: stainless steel 304, 3pcs 2.0kw

Shell material: Mirror-polished stainless steel shell 304

Water tank material: stainless steel 304

Power: 6.0kw

Room volume use: 5~7 cubic meter volume

Recommend features: auto drain, auto turn on/ turn off, auto pressure relief, auto cut out when over heat, auto flashing etc



The KSA-S steam generator is with new electronic touch screen control kit and new mirror-polished stainless steel 304# steam head. Full body made of stainless steel, durable and luxurious.





1. The KSA Elegance touch screen control kit has 6 bottoms to set working stages. Working time 1-60mins can be adjusted or long , the setting temperature of the steam will be in 6-60C degrees and can be adjusted between 35-55C degree (95-131F degree).KSA-S steam generators feature an advanced electronic control with fault diagnostics having different code to show each operation of the generators. Safety features include boil dry protection, thermal overload safety cut out and pressure relief valve.

2. Each KSA-S steam generator has 3 groups of heating elements to provide heating by segment. From cold all 3 groups operate for maximum power and rapid heating, when the steam room temperature is almost reached, then group 1 stop, when the required temperature is achieved, then group 2 stop. The group 3 alternates on and off to gently maintain the temperature without large fluctuations improving user comfort.

3. KSA-S steam generators have an auto drain down with a self flushing cycle to dump the boiler contents in a controlled manner. At the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the elements before the final drainage helps prolong their useful life.





Applications:



For 5~7m³ residential and commercial steam baths

A few minutes of steam daily, in the comfort of your own home, is an opportunity to improve your overall well-being in every way.

A daily steam bath is a remarkable way to indulge yourself.

It causes the perspiration that is the single healthiest thing you can do for your skin. Stress and negativity quickly dissipate in the soft clouds of intense yet comforting heat.





Specifications:



We normally produce KSA-S 3.0kw, KSA-S 4.0kw, KSA-S 5.0kw, KSA-S 6.0kw, KSA-S 7.0kw, KSA-7.5kw, KSA-S 8.0kw, KSA-S 9.0kw, KSA-10.5kw, KSA-S 12.0kw, KSA-S 15.0kw, KSA-S 18.0kw, KSA-S 22.0kw, KSA-S 24.0kw in stock.



  1. Touch screen control panel with Digital display
  2. Control panel used the advanced inducing technology
  3. Controls sauna temperature 35 degree to 55 degrees
  4. Controls sauna time 1 minute to 60 minutes or long time
  5. Intelligent to heat by segment
  6. Intelligent to fill water with steam
  7. Intelligent to do a self flushing cycle
  8. Light can be connected to controller
  9. Intelligent to indicate fault with the code
  10. Can pause at working
  11. To show CH can working for long
  12. Intelligent to save two sets of temperature, can individual set time by memory
  13. Automatically shuts down when water level is too low
  14. Temperature high limit switch
  15. Waterproof grade: IPX5
  16. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  17. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  18. We will provide some spare parts to our customer as replacement.





Parameters:



Model

Power KW

Room volume (m³)

Power requirements           50/60Hz

Current (A)

Power        wire (Copper)          N*mm2

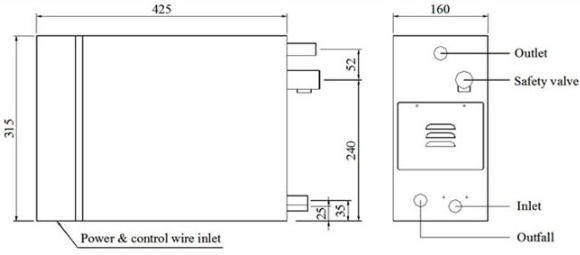

Dimensions  CM

Packing dimensions CM

Gross weight kg

KSA-S30

3.0

2~4

220-240V~

13.6

3*2.5

42.5*16*30

54.5*21.5 *42

10.5~11

KSA-S40

4.0

3~5

220-240V~

18.2

3*2.5

KSA-S45

4.5

3.5~5.5

220-240V~

20.5

3*2.5

380-415V3N~

6.8

5*1.5

KSA-S50

5.0

4~6

220-240V~

22.7

3*2.5

380-415V3N~

9.1

5*1.5

KSA-S60

6.0

5~7

220-240V~

27.3

3*4.0

380-415V3N~

9.1

5*1.5

KSA-S70

7.0

5.5~8.5

220-240V~

31.8

3*6.0

47.5*18.5 *45

53.5*23*59

15.6~16.2

380-415V3N~

11.4

5*2.5

KSA-S80

8.0

7~10

220-240V~

36.4

3*6.0

380-415V3N~

13.6

5*2.5

KSA-S90

9.0

8~11

380-415V3N~

13.6

5*2.5

16.4~17

KSA-S105

10.5

9~12

380-415V3N~

15.9

5*2.5

KSA-S120

12.0

11~14

380-415V3N~

18.2

5*2.5

KSA-S150

15.0

13~18

380-415V3N~

22.7

5*2.5

51*18.5*46

56.5*23*59

17.5~18.5

KSA-S180

18.0

16~22

380-415V3N~

27.3

5*4.0

KSA-S225

22.5

21~28

380-415V3N~

34.1

5*6.0

KSA-S240

24.0

22~30

380-415V3N~

36.4

5*6.0

Notice: KSA-S steam generators are equipped with auto drain system. 9~12 KW units could be customized to 220~240V on request.



Touch screen digital Sauna Steam Generator automatic with 6kw 230v

KSA-S60





Competitive Advantage:



Each KSA-S steam generator is subjected to 6 strictly controlled tests:
    1. 48 hour continual test for circuit board
    2. Controller is tested for all functions
    3. High voltage test
    4. Earthing resistance test
    5. Power test.
    6. Operational test of every steam generator before packing

We are the real factory to produce steam and sauna products more than 10 years. The best price will help you enlarge your market.
