24kw Electrical Steam Shower Generator Automatic 230v For Steam Rooms

China 24kw Electrical Steam Shower Generator Automatic 230v For Steam Rooms supplier

Large Image :  24kw Electrical Steam Shower Generator Automatic 230v For Steam Rooms

Product Details:

Place of Origin: China
Brand Name: KSA
Certification: CE
Model Number: KSA-S240

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 1 set/carton
Delivery Time: 1-3 workdays
Payment Terms: T/T, Paypal, Western Union,
Supply Ability: 1800 sets
Detailed Product Description



24kw Electrical Steam Shower Generator Automatic 230v For Steam Rooms





Quick Detail:



  1. Control panel: Touch screen digital and optional
  2. Type: Wet Steam Sauna
  3. Power output: 24.0kw
  4. voltage: 380~400V
  5. phase: 3
  6. Current: 36.4A
  7. Main Material: stainless steel tank and Mirror-polished stainless steel shell
  8. Color: stainless steel
  9. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  10. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  11. Shape: Cuboid
  12. Size: 51*18.5*46mm
  13. Room volume(cubic meter):22~30
  14. Usage: steam sauna room
  15. working time: 1~60 minutes or long time
  16. Heating: heat elements
  17. Power source: Electric
  18. Time Setting: 1-60mins
  19. Temperature range to control: 95 F degree~131 F degree
  20. Temperature range to show on control panel: 43 F degree ~140 F degree



24kw electrical steam generator automatic 380v for steam rooms



  1. Power:24.0kW, voltage: 380V, phase:3
  2. Two controllers: KSA-elegance
  3. Operates machine for 1~60 minutes before turning off
  4. Ultra quiet steam generator
  5. Super duty model
  6. Controls sauna temperature
  7. Temperature high limit switch
  8. With cleaning and draining function
  9. Rapid steam function
  10. Stainless steel constructions
  11. Automatically shuts down when water level is too low



Power flush pressurized inner tank system is one of the host advantages of KSA-S steam generators. The other main functions are: pressure relief automatically, thermal overload safety cut out, self-diagnose message and steam fast response etc.





Description:



The features of KSA-S240 24.0kw steam generator:

Heat element material: stainless steel 304

Water tank material: stainless steel 304

Power: 24.0kw

Room volume use: 22~30cubic meter volume

Recommend features: auto drain, auto turn on/ turn off, auto pressure relief, auto cut out when over heat, auto flashing etc



For Steam Spa’s, Showers, Baths, Shower cabins

Enjoy the elegant and professional steam generator designed to work in a residential or commercial environment.



  • Durable metal construction
  • Superior heating elements – improved energy efficiency
  • Waterproofed link cable for control panel(s)
  • Intelligent touch screen control kit
  • Electronic thermostat
  • Ultra quiet steam generator
  • Rapid steam function
  • Continuous steam output
  • Intelligent to indicate fault
  • Have pause function
  • Intelligent to save two sets of temperature, can individual set time by memory
  • Light can be connected to illumine, water inflow to magnetize and filtrate etc.
  • Intelligence sequential heating, automatic to turn off and wash, with pressure to drain.



1 set steam generator contains:

1 unit KSA-S 24.0kw steam generator mirror-polished stainless steel shell with full sus body

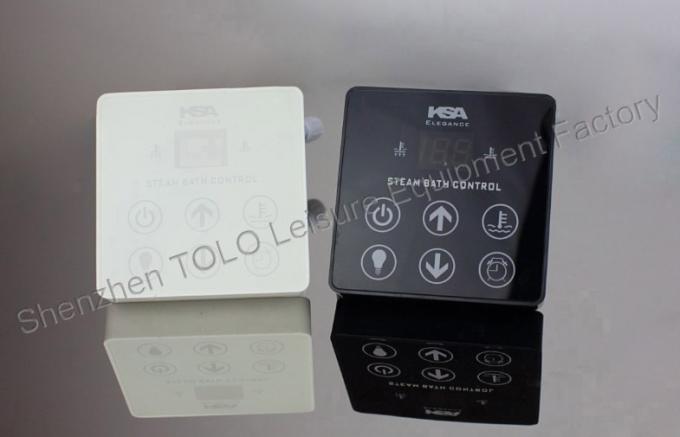

1 unit KSA elegance touch screen control kit

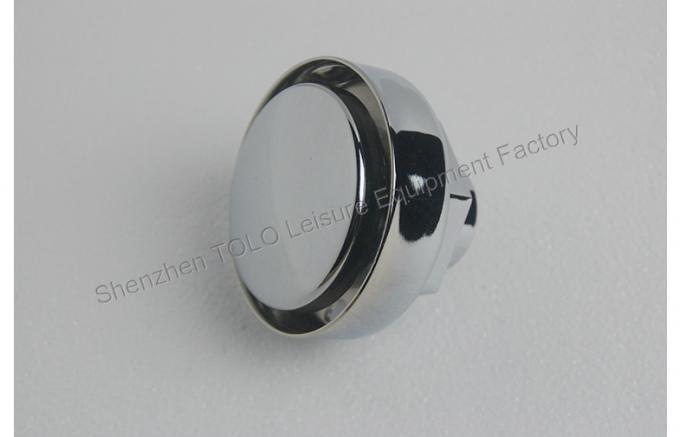

2 unit mirror-polished stainless steel steam diffusers

1 unit power flush pressurized inner tank system

1 unit electronic thermostat

1pcs water proof control wire





The KSA-S steam generator is with new electronic touch screen control kit and new mirror-polished stainless steel 304# steam head. Full body made of stainless steel, durable and luxurious.



Sequential heating to save energy and rapid steam function:

Each KSA-S steam generator has 3 groups of heating elements to provide heating by segment. From cold all 3 groups operate for maximum power and rapid heating, when the steam room temperature is almost reached, then group 1 stop, when the required temperature is achieved, then group 2 stop. The group 3 alternates on and off to gently maintain the temperature without large fluctuations improving user comfort. The steam will fast start in second, not minute.




1. The KSA Elegance touch screen control kit has 6 bottoms to set working stages. Working time 1-60mins can be adjusted or long , the setting temperature of the steam will be in 6-60C degrees and can be adjusted between 35-55C degree (95-131F degree).KSA-S steam generators feature an advanced electronic control with fault diagnostics having different code to show each situation of the generators. Safety features include boil dry protection, over heating protect and power flush pressurized inner tank system.



2. KSA-S steam generators have an automatic drain down with a self flushing cycle to dump the boiler contents in a controlled manner. At the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the elements before the final drainage helps prolong their useful life.




Applications:



For 22~30m³ residential and commercial steam baths, Steam Spa’s, Showers, Baths, Shower cabins



A few minutes of steam daily, in the comfort of your own home, is an opportunity to improve your overall well-being in every way.

A daily steam bath is a remarkable way to indulge yourself.

It causes the perspiration that is the single healthiest thing you can do for your skin. Stress and negativity quickly dissipate in the soft clouds of intense yet comforting heat.





Specifications:



  • Steam diffuser in chrome allowing essential oils into the steam
  • Timer control, automatically switches off after setting time
  • Mirror-polished stainless steel shell
  • Intelligent touch screen control kit
  • Fast start of steam in second, not minute
  • Power flush pressurized inner tank system
  • Full stainless steel constructions
  • Mirror-polished stainless steel shell
  • More than 10 year manufacturer experience!

24kw Electrical Steam Shower Generator Automatic 230v For Steam Rooms

24kw Electrical Steam Shower Generator Automatic 230v For Steam Rooms







Parameters:



Model

Power KW

Room volume (m³)

Power requirements           50/60Hz

Current  (A)

Power        wire (Copper)          N*mm2

Dimensions  CM

Packing dimensions CM

Gross weight kg

KSA-S30

3.0

2~4

220-240V~

13.6

3*2.5

42.5*16*30

54.5*21.5*42

10.5~11

KSA-S40

4.0

3~5

220-240V~

18.2

3*2.5

KSA-S45

4.5

3.5~5.5

220-240V~

20.5

3*2.5

380-415V3N~

6.8

5*1.5

KSA-S50

5.0

4~6

220-240V~

22.7

3*2.5

380-415V3N~

9.1

5*1.5

KSA-S60

6.0

5~7

220-240V~

27.3

3*4.0

380-415V3N~

9.1

5*1.5

KSA-S70

7.0

5.5~8.5

220-240V~

31.8

3*6.0

47.5*18.5*45

53.5*23*59

15.6~16.2

380-415V3N~

11.4

5*2.5

KSA-S80

8.0

7~10

220-240V~

36.4

3*6.0

380-415V3N~

13.6

5*2.5

KSA-S90

9.0

8~11

380-415V3N~

13.6

5*2.5

16.4~17

KSA-S105

10.5

9~12

380-415V3N~

15.9

5*2.5

KSA-S120

12.0

11~14

380-415V3N~

18.2

5*2.5

KSA-S150

15.0

13~18

380-415V3N~

22.7

5*2.5

51*18.5*46

56.5*23*59

17.5~18.5

KSA-S180

18.0

16~22

380-415V3N~

27.3

5*4.0

KSA-S225

22.5

21~28

380-415V3N~

34.1

5*6.0

KSA-S240

24.0

22~30

380-415V3N~

36.4

5*6.0

Notice: KSA-S steam generators are equipped with auto drain system. 9~12 KW units could be customized to 220~240V on request.



We normally produce KSA-S 3.0kw, KSA-S 4.0kw, KSA-S4.5kw, KSA-S 5.0kw, KSA-S 6.0kw, KSA-S 7.0kw, KSA-7.5kw, KSA-S 8.0kw, KSA-S 9.0kw, KSA-10.5kw, KSA-S 12.0kw, KSA-S 15.0kw, KSA-S 18.0kw, KSA-S 22.0kw, KSA-S 24.0kw in stock.



24kw Electrical Steam Shower Generator Automatic 230v For Steam Rooms

KSA-S240





  1. Black and White Touch screen control panel with Digital display
  2. Control panel used the advanced inducing technology
  3. Controls sauna temperature 35 degree to 55 degrees
  4. Controls sauna time 1 minute to 60 minutes or long time
  5. Intelligent to heat by segment
  6. Intelligent to fill water with steam
  7. Intelligent to do a self flushing cycle
  8. Light can be connected to controller
  9. Intelligent to indicate fault with the code
  10. Can pause at working
  11. To show CH can working for long
  12. Intelligent to save two sets of temperature, can individual set time by memory
  13. Automatically shuts down when water level is too low
  14. Temperature high limit switch
  15. Waterproof grade: IPX5
  16. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  17. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  18. We will provide some spare parts to our customer as replacement.





Competitive Advantage:



Every KSA-S steam generator is subjected to 6 strictly controlled tests by Shenzhen TOLO Leisure Equipment:
    1. 48 hour continual test for circuit board
    2. Controller is tested for all functions
    3. High voltage test
    4. Earthing resistance test
    5. Power test.
    6. Operational test of every steam generator before packing

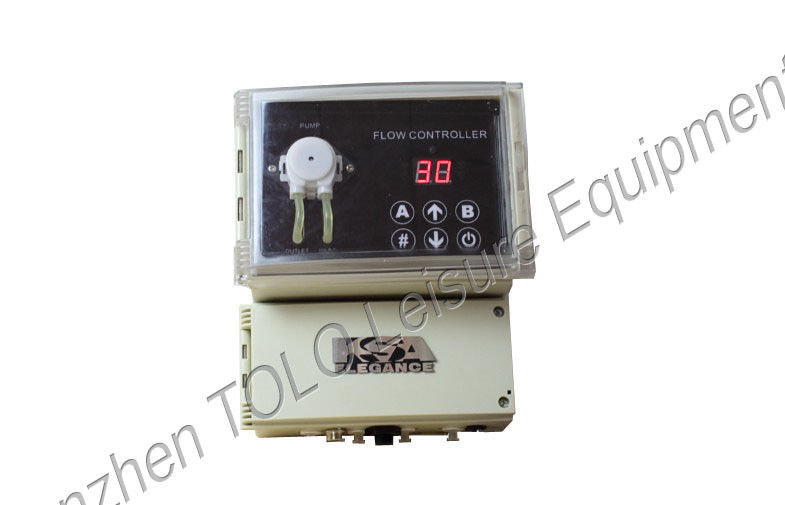

single / 2 way Aroma pump is optional:





24kw Electrical Steam Shower Generator Automatic 230v For Steam Rooms
