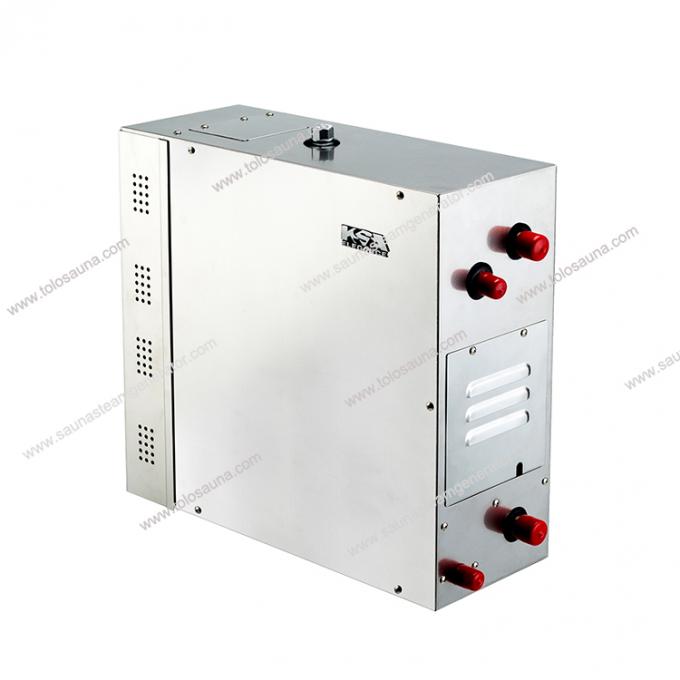

KSA Elegance steam generator Quick Detail:

1. Type: Wet Steam Sauna
2. control panel: digital and optional
3. Power output: 7.0kw
4. voltage: 220V/400V
5. Main Material: stainless steel tank, galvanizing and powder coated shell
6. Color: grey green
7. Current:31.8A/11.4A
8. phase: 1/3
9. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
10. Auto function: auto water inlet , auto drain, auto flushing, auto power off
11. Shape: Cuboid

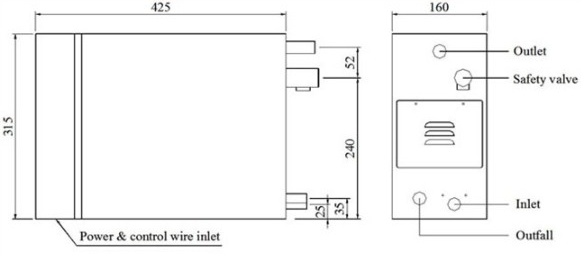

12. Size: 475*185*450mm
13. Room volume(cubic meter): 5.5~8.5
14. Usage: steam sauna room
15. working time: 1~60 minutes or long time
16. Heating: heat elements
17. Power source: Electric
18. Time Setting: 1-60mins
19. Temperature range to control: 95 F degree~131 F degree
20. Temperature range to show on control panel: 43 F degree ~140 F degree
21. Intelligent to indicate fault with the code.
22. When controller shows CH can working for long
23. It Can pause at working
24. Intelligent to save two sets of temperature, can individual set time by memory
25. Intelligent to heat by segment, fill water with steam, automatic to turn off , a self flushing cycle ,with pressure to drain.
26. Light can be connected to controller, water inflow to magnetize and filtrate etc.

Our KSA Elegance steam generators mainly have below functions:

It is durable and efficient with classic shape. The program have ran more than 3 years, and shows stable.

7kw Home wet steam generator Cuboid with automatic flushing

Description:

Now We main show the prevent water scale function:

Mineral buildup is the main problem affecting steam generator performance and life of heating elements. Non-resolvable particles in water could be removed by adding filter to the water inlet of steam generator, but resolved scale minerals dissolve under high temperature, and then precipitate layers of rocklike deposits inside water tank and on surface of heating elements when water cools down. As a result of water scale build up, it may clog pipes, affecting heat dissipation of elements and eventually damage them. Thus washing and cleaning the steam generator after use is extremely important for hard water area or heavy-duty commercial use. With our unique auto drain system, the inner tank is washed and drained thoroughly by an 8kg powerful pump to eliminate mineral build up, which could significantly extend the life of heating elements and the steam generator as well.

How to install them?

Water inlet:  First connect the water magnetizer (if applicable) to the water inlet solenoid valve. Then please use a 1/2’’ flexible stainless steel hose to connect the other side of the water magnetizer and the water supply pipeline. Do not connect to metal water supply pipeline directly which may damage the water inlet valve. Only use cold water supply.

Steam outlet:  Use no less than 1/2’’ copper pipe to connect the steam head and the steam outlet pipe of the generator. The pipe should be less than 3 meters long and minimize the number of elbows, otherwise heat isolating methods should be implemented.

Steam head:  The steam head should be about 300mm from the ground and at least 150mm from customer seats. Please apply silicone glue on the steam pipe nipple and back of the steam head, and then screw the steam head on to the steam pipe nipple. Please refer to part A in figure 7, the Aromatherapy reservoir should face upwards.

Drain pipe: Please use 1/2’’ copper pipe to connect the drain outlet and the drain pipeline of the house. Similarly, use 1/2’’ copper pipe to connect the safety valve and the drain pipeline of the house. The drain pipeline should be installed with small angle so as to help residual water in the steam generator flow to the drain pipe.

More detail please contact us at info@hktolo.com

Applications:

For steam bath, Turkish bath and public sauna or hotel.

Technical Data

KSA-E70

1. Control panel with Digital display
2. Control panel used the advanced inducing technology
3. Controls sauna temperature 35 degree to 55 degrees
4. Controls sauna time 1 minute to 60 minutes or long time
5. Intelligent to heat by segment
6. Intelligent to fill water with steam
7. Intelligent to do a self flushing cycle
8. Light can be connected to controller
9. Intelligent to indicate fault with the code
10. Can pause at working
11. To show CH can working for long
12. Intelligent to save two sets of temperature, can individual set time by memory
13. Automatically shuts down when water level is too low
14. Temperature high limit switch
15. Waterproof grade: IPX5
16. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
17. Auto function: auto water inlet , auto drain, auto flushing, auto power off

We will provide some spare parts to our customer as replacement.

Competitive Advantage:

This KSA-E 70 steam generator with 2pcs 2.5kw and 1pcs 2.0kw heating elements is ideal for middle size steam rooms. The 7.0 kW is available either 3-Phase or 1-Phase convertible to 3-Phase connection. These steam generators are ideal for heavy use steam rooms
