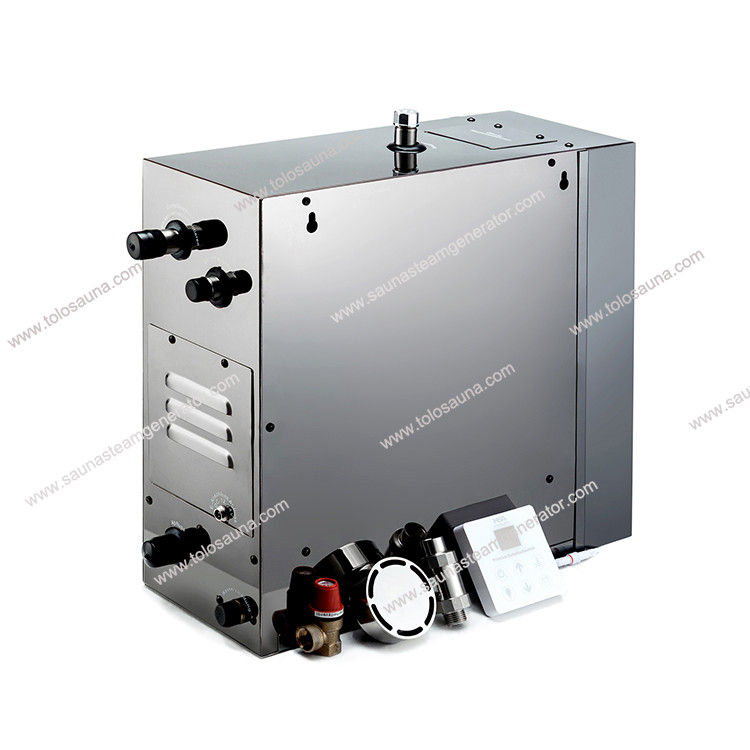

9kw Automatic Residential Steam Generator 400v with 3 phase for steam bath

China 9kw Automatic Residential Steam Generator 400v with 3 phase for steam bath supplier

Large Image :  9kw Automatic Residential Steam Generator 400v with 3 phase for steam bath

Product Details:

Place of Origin: China
Brand Name: KSA
Certification: CE
Model Number: KSA-E90

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 1 set/carton
Delivery Time: 1-7 workdays
Payment Terms: T/T, Paypal, Western Union,
Supply Ability: 1800 sets
Detailed Product Description
Power: 9.0kw Voltage: 380V
Material: Black Stainless Steel Phase: 3
Power Source: Electric Type: Wet Steam Sauna
Usage: Steam Sauna Room Shape: Cuboid
Color: Stainless Steel

Easy to install! new stainless steel Steam Nozzle KSA-E6.0 steam generators 9.0kw/380V~400v with new 2014 touch screen controller





Quick Detail:



  1. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  2. Power output: 9.0kw
  3. phase: three
  4. voltage:380V
  5. Current: 13.6A
  6. Temperature range to control: 95 F degree~131 F degree
  7. Temperature range to show on control panel: 43 F degree ~140 F degree
  8. Type: Wet Steam Sauna
  9. control panel: Black/ white touch screen computer control panel
  10. Main Material: stainless steel water tank and shell
  11. Color: stainless steel
  12. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  13. Shape: Cuboid
  14. Size: 47.5*18.5*45cm
  15. Room volume(cubic meter):8~11
  16. Usage: steam sauna room
  17. working time: 1~60 minutes or long time
  18. Heating: stainless steel heat elements
  19. Power source: Electric
  20. Time Setting: 1-60mins



KSA-E steam generator have middle size to install easily. They have 304 stainless steel water tank, 304 stainless steel heating element with high quality Teflon to prevent water scale.



What’s the steam bath?

A steambath is an ancient type of bath, first made popular by the ancient Greeks and Romans. The origins of the steam bath come from the Roman bath, which began during the height of the Roman Empire. Ancient Roman baths served many community and social functions within Roman society. Everyone in Rome used Roman public baths, regardless of socioeconomic status.



 9kw Automatic Sauna Steam Generator 400v with 3 phase for steam bath



KSA Elegance 9.0kw steam bath generator:



Humanized design for repair, there have 3 service entrances. A wash hole on the top for water tank cleaning, a service entrance for water level sensor , a more one on the side for circuit board.



9kw Automatic Residential Steam Generator 400v with 3 phase for steam bathDurability

• Type 304 high-quality stainless steel boiler tank & shell.
• Or Galvanized enclosure with superior powder coating, corrosion-resistant, excellent clour and gloss retention.
• Industrial process high-quality 304 stainless steel heating elements with Teflon, corrosion-resistant.
• Easy Maintenance electrical probe for water level control

• Water inlet valve enhanced for 10 million operations.
• Well insulated steam boiler improves energy efficiency and safe operation.





Description:





9kw Automatic Residential Steam Generator 400v with 3 phase for steam bathInstallation

• All compression-fitting connection.
• Sediment strainer factory-installed.
• Steam unit and water sensor both come with easily accessible repair entrance.
• Motorized drain valve with the option for manual flush as needed.



9kw Automatic Residential Steam Generator 400v with 3 phase for steam bathOperation

• Compact, easy to install.
• Energy-efficient, inexpensive to operate.
• Super-quiet operation, continuous smooth steam.
• Completely controlled by programmable microprocessor.
• Electronic thermostat and sensor for accurate steam room temperature.
• Standby Mode preheats the unit, steam is ready on-demand.
• Built-in 60 min safety shutoff.
• Automatic flush system removes sediments, prevents calcium buildup, and is programmed to refill fresh water for next steam bath, making it hygienic.
• Exclusive drain-cooling system cools the hot water before flushing, meets building codes, and is safe for the user.



9kw Automatic Residential Steam Generator 400v with 3 phase for steam bathQuality Assurance
• ISO 9001:2008 Quality Management System ensures advanced design, perfect pre- & post-production quality and superior customer service.
• 2-year limited warranty or optional lifetime warranty offers you a worry-free lifestyle.
• Specified by leading architects, consultants, designers throughout worldwide.
• Successfully served in prestigious projects all over the world.



9kw Automatic Residential Steam Generator 400v with 3 phase for steam bathControls
• Water-tight control mountable in/out of steam room.
• Electronic 1~60-min. and On/Off control with indicator light.
• Electronic digital Advanced Designer series.
• 24-hour clock timer with preset on & off operation.
• Multi-memory temperature & time function offers individual settings.
• New Design stainless steel steam head .
• Fragrance of your choice.
• Chromatherapy RGB.
• LED light controlled on the touch screen controller
• Hi-powered waterproof marine speakers(optional).





Applications:



For 8~11m³ residential and commercial steam baths

A daily steam bath is a remarkable way to indulge yourself. It causes the perspiration that is the single healthiest thing you can do for your skin. Stress and negativity quickly dissipate in the soft clouds of intense yet comforting heat. A few minutes of steam daily, in the comfort of your own home, is an opportunity to improve your overall well-being in every way.





Specifications:



Host of Features:

  1. Touch screen computer control panel with digital display Can pause at working
  2. To show CH can working for long
  3. Intelligent to save two sets of temperature, can individual set time by memory
  4. Automatically shuts down when water level is too low
  5. Temperature high limit switch
  6. Control panel used the advanced inducing technology
  7. Controls sauna temperature 35 degree to 55 degrees
  8. Controls sauna time 1 minute to 60 minutes or long time
  9. Intelligent to heat by segment
  10. Intelligent to fill water with steam
  11. Intelligent to do a self flushing cycle
  12. Light can be connected to controller
  13. Intelligent to indicate fault with the code
  14. Waterproof grade: IPX5
  15. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  16. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  17. We will provide some spare parts to our customer as replacement.





Parameters:



Model

Power KW

Room volume (m³)

Power requirements           50/60Hz

Current (A)

Power        wire (Copper)          N*mm2

Dimensions  CM

Packing dimensions CM

Gross weight kg

KSA-E30

3.0

2~4

220-240V~

13.6

3*2.5

42.5*16*30

54.5*21.5*42

10.5~11

KSA-E40

4.0

3~5

220-240V~

18.2

3*2.5

KSA-E45

4.5

3.5~5.5

220-240V~

20.5

3*2.5

380-415V3N~

6.8

5*1.5

KSA-E50

5.0

4~6

220-240V~

22.7

3*2.5

380-415V3N~

9.1

5*1.5

KSA-E60

6.0

5~7

220-240V~

27.3

3*4.0

380-415V3N~

9.1

5*1.5

KSA-E70

7.0

5.5~8.5

220-240V~

31.8

3*6.0

47.5*18.5*45

53.5*23*59

15.6~16.2

380-415V3N~

11.4

5*2.5

KSA-E80

8.0

7~10

220-240V~

36.4

3*6.0

380-415V3N~

13.6

5*2.5

KSA-E90

9.0

8~11

380-415V3N~

13.6

5*2.5

16.4~17

KSA-E105

10.5

9~12

380-415V3N~

15.9

5*2.5

KSA-E120

12.0

11~14

380-415V3N~

18.2

5*2.5

KSA-E150

15.0

13~18

380-415V3N~

22.7

5*2.5

51*18.5*46

56.5*23*59

17.5~18.5

KSA-E180

18.0

16~22

380-415V3N~

27.3

5*4.0

KSA-E225

22.5

21~28

380-415V3N~

34.1

5*6.0

KSA-E240

24.0

22~30

380-415V3N~

36.4

5*6.0

Notice: KSA-E steam generator are equiped with auto drain system. 9~12 KW units could be customized to 220~240V on request.







Competitive Advantage:







Every KSA-E steam generator is subjected to 6 strictly controlled tests:
    1. 48 hour continual test for circuit board
    2. Controller is tested for all functions
    3. High voltage test
    4. Earthing resistance test
    5. Power test.
    6. Operational test of every steam generator before packing
