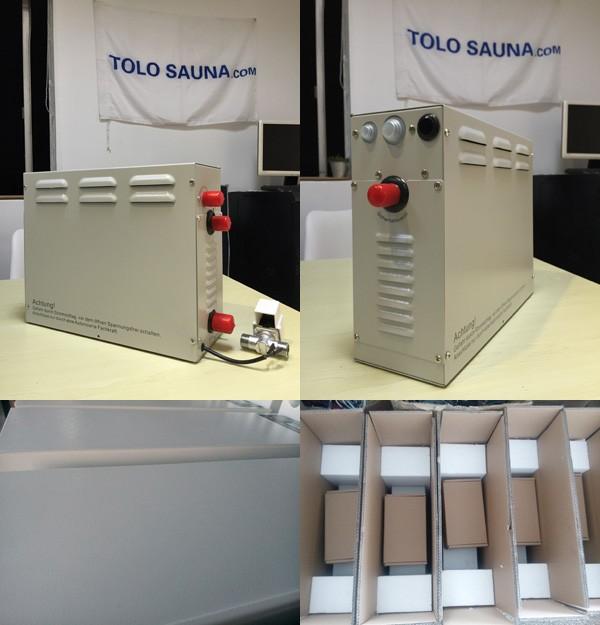

Automatic steam generator 4.5kw 220v - 230v for 3.5 - 5.5 cubic meter room

China Automatic steam generator 4.5kw 220v - 230v for 3.5 - 5.5 cubic meter room supplier

Large Image :  Automatic steam generator 4.5kw 220v - 230v for 3.5 - 5.5 cubic meter room

Product Details:

Place of Origin: China
Brand Name: KSA
Certification: CE
Model Number: KSA-E45

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 1 set/carton
Delivery Time: 1-7 workdays
Payment Terms: T/T, Paypal, Western Union,
Supply Ability: 1800 sets
Detailed Product Description
Power Source: Electric Power: 4.5kw
Type: Wet Steam Sauna Usage: Steam Sauna Room
Voltage: 220V/380V Shape: Cuboid
Material: Stainless Steel Color: Black Stainless Steel
Phase: Single/three

For 3.5~5.5 cubic meter room KSA-E45 steam generators 4.5kw/220v-230v with new stainless steel Steam Nozzle





KSA 4.5kw Steam Generator Quick Detail:



  1. Type: Wet Steam Sauna
  2. control panel: Black/ white touch screen computer control panel
  3. Power output: 4.5kw
  4. phase: single/three
  5. voltage: 220V/380V
  6. Current: 20.5A/6.8A
  7. Main Material: stainless steel water tank and shell
  8. Color: stainless steel
  9. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  10. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  11. Shape: Cuboid
  12. Size: 405x155x280mm
  13. Room volume(cubic meter):3.5~5.5
  14. Usage: steam sauna room
  15. working time: 1~60 minutes or long time
  16. Heating: stainless steel heat elements
  17. Power source: Electric
  18. Time Setting: 1-60mins
  19. Temperature range to control: 95 F degree~131 F degree
  20. Temperature range to show on control panel: 43 F degree ~140 F degree



KSA-E steam generator have middle size to install easily. They have 304 stainless steel water tank, 304 stainless steel heating element with high quality Teflon to prevent water scale.



What’s the steam bath?

A steambath is an ancient type of bath, first made popular by the ancient Greeks and Romans. The origins of the steam bath come from the Roman bath, which began during the height of the Roman Empire. Ancient Roman baths served many community and social functions within Roman society. Everyone in Rome used Roman public baths, regardless of socioeconomic status.



Automatic steam generator 4.5kw 220v - 230v for 3.5~5.5 cubic meter room



Description:



The KSA elegance touch screen controller has 6 bottoms to set working stages. working time 1-60mins can be adjusted or long ,the setting temperature of the steam will be in 6-60C degrees and can be adjusted between 35-55C degree (95-131F degree).KSA-E steam generators feature an advanced electronic control with on board diagnostics having a series of LEDs to show each operation of the generator. Each generator has 3 groups of heating elements to provide sequential heating (from cold all 3 groups operate for maximum power and rapid heating, when the steam room temperature is almost reached, then group 1 stop, when the required temperature is achieved, then group 2 stop. The group 3 alternates on and off to gently maintain the temperature without large fluctuations improving user comfort).

KSA-E steam generators have an auto drain down with a self flushing cycle to dump the boiler contents in a controlled manner - at the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the elements before the final drainage helps prolong their useful life.
Electronic controls with a digital display to enable temperatures of 30 to 60 degrees centigrade and time duration 1 to 60 minutes or continual operation with additional keys for a steam room light, keyboard lock, manual drain down etc. Safety features include boil dry protection, thermal overload safety cut out and pressure relief valve.





Applications:



For 3.5~5.5m³ residential and commercial steam baths

A daily steam bath is a remarkable way to indulge yourself. It causes the perspiration that is the single healthiest thing you can do for your skin. Stress and negativity quickly dissipate in the soft clouds of intense yet comforting heat. A few minutes of steam daily, in the comfort of your own home, is an opportunity to improve your overall well-being in every way.





Specifications:



Host of advantages:

  1. Touch screen computer control panel with digital display Can pause at working
  2. To show CH can working for long
  3. Intelligent to save two sets of temperature, can individual set time by memory
  4. Automatically shuts down when water level is too low
  5. Temperature high limit switch
  6. Control panel used the advanced inducing technology
  7. Controls sauna temperature 35 degree to 55 degrees
  8. Controls sauna time 1 minute to 60 minutes or long time
  9. Intelligent to heat by segment
  10. Intelligent to fill water with steam
  11. Intelligent to do a self flushing cycle
  12. Light can be connected to controller
  13. Intelligent to indicate fault with the code
  14. Waterproof grade: IPX5
  15. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  16. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  17. We will provide some spare parts to our customer as replacement.





Parameters:



Model

Power KW

Room volume (m³)

Power requirements           50/60Hz

Current (A)

Power        wire (Copper)          N*mm2

Dimensions  CM

Packing dimensions CM

Gross weight kg

KSA-E30

3.0

2~4

220-240V~

13.6

3*2.5

42.5*16*30

54.5*21.5*42

10.5~11

KSA-E40

4.0

3~5

220-240V~

18.2

3*2.5

KSA-E45

4.5

3.5~5.5

220-240V~

20.5

3*2.5

380-415V3N~

6.8

5*1.5

KSA-E50

5.0

4~6

220-240V~

22.7

3*2.5

380-415V3N~

9.1

5*1.5

KSA-E60

6.0

5~7

220-240V~

27.3

3*4.0

380-415V3N~

9.1

5*1.5

KSA-E70

7.0

5.5~8.5

220-240V~

31.8

3*6.0

47.5*18.5*45

53.5*23*59

15.6~16.2

380-415V3N~

11.4

5*2.5

KSA-E80

8.0

7~10

220-240V~

36.4

3*6.0

380-415V3N~

13.6

5*2.5

KSA-E90

9.0

8~11

380-415V3N~

13.6

5*2.5

16.4~17

KSA-E105

10.5

9~12

380-415V3N~

15.9

5*2.5

KSA-E120

12.0

11~14

380-415V3N~

18.2

5*2.5

KSA-E150

15.0

13~18

380-415V3N~

22.7

5*2.5

51*18.5*46

56.5*23*59

17.5~18.5

KSA-E180

18.0

16~22

380-415V3N~

27.3

5*4.0

KSA-E225

22.5

21~28

380-415V3N~

34.1

5*6.0

KSA-E240

24.0

22~30

380-415V3N~

36.4

5*6.0

Notice: KSA-E steam generator are equiped with auto drain system. 9~12 KW units could be customized to 220~240V on request.



Automatic steam generator 4.5kw 220v - 230v for 3.5 - 5.5 cubic meter room







Competitive Advantage:



Every KSA-E steam generator is subjected to 6 strictly controlled tests:
    1. 48 hour continual test for circuit board
    2. Controller is tested for all functions
    3. High voltage test
    4. Earthing resistance test
    5. Power test.
    6. Operational test of every steam generator before packing





Automatic steam generator 4.5kw 220v - 230v for 3.5 - 5.5 cubic meter room
