Home Sauna Steam Generator 380v / 400v For Turkish Bath , Auto Flushing

China Home Sauna Steam Generator 380v / 400v For Turkish Bath , Auto Flushing supplier

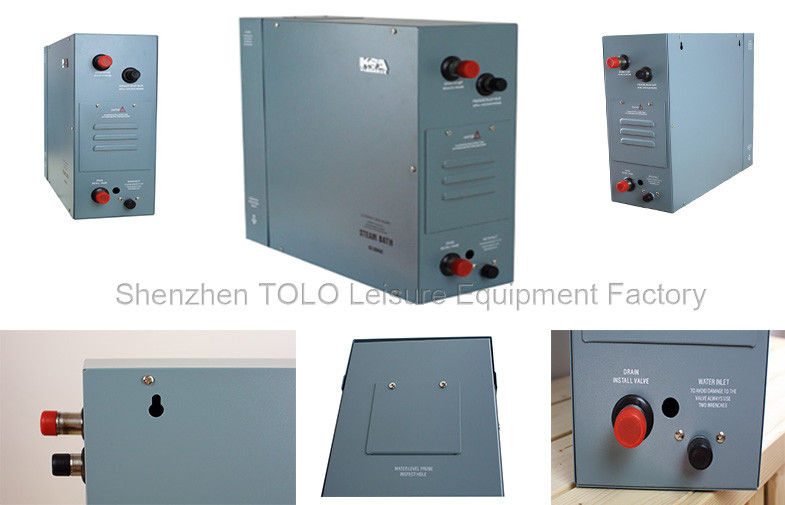

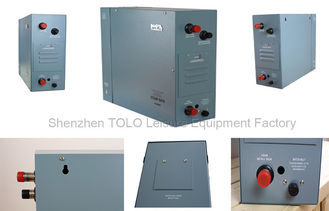

Large Image :  Home Sauna Steam Generator 380v / 400v For Turkish Bath , Auto Flushing

Product Details:

Place of Origin: China
Brand Name: TOLO
Certification: CE
Model Number: TOLO-E90

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 1 set/carton
Delivery Time: 1-3 workdays
Payment Terms: T/T, Paypal, Western Union,
Supply Ability: 1800 sets
Detailed Product Description



Home Sauna Steam Generator 380v / 400v For Turkish Bath , auto flushing





Quick Detail:



1 set steam bath generator suit: 1 unit 9.0 kilowatts steam generator

                                                    1pcs steam heads

                                                    1pcs TOLO brand touch screen control kit

                                                    1pcs pressure balancing valve

                                                    1pcs waterproofed link cable for control panel(s)

                                                    1pcs electronic thermostat



  1. Main Material: stainless steel tank, galvanizing and powder coated shell
  2. Color: grey green/ OEM your color
  3. Power output: 9.0kw
  4. Voltage: 380V/440v/110v
  5. Type: Wet Steam Sauna
  6. control panel: 2014 new touch screen control panel
  7. Heating: heat elements
  8. Current: 38.5A
  9. phase: 3
  10. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  11. Shape: Cuboid
  12. Size: 425x160x300mm
  13. Room volume(cubic meter): 24~33
  14. Usage: steam sauna room
  15. working time: 1~60 minutes or long time
  16. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  17. Power source: Electric
  18. Time Setting: 1-60mins
  19. Temperature range to control: 95 F degree~131 F degree
  20. Temperature range to show on control panel: 43 F degree ~140 F degree





We have more than 10 years manufacturing experience for sauna equipment.





main feature :



                  A. steam out right long when cold water fill in

                  B. Auto turn off when reaches working time.

                  C. Auto drain after power off

                  D. self flushing heating element

                  E. Intelligent to indicate fault with code

                  F. Protect when overheating

                 G. Auto power off when shortage of water

                 H. intelligent to protect when overpressure of water tank

                 I. Have pause function





Description:



Display timing 1-60mins in subsection and automatically turn off, the temperature of the steam will be in 6-60C degrees, the temperature can be adjusted between 35-55C degree (95-131F degree), intelligently heat up in subsection, automatically drain, produce steam ceaselessly and hint the faults.



TOLO-E steam generators feature an advanced electronic control with on board diagnostics having a series of LEDs to show each operation of the boiler. Each generator is fitted with 3 banks of heating elements to provide sequential heating (from cold all 3 banks operate for maximum power and rapid heating, when the steam room temperature is almost reached bank 1 stop, when the required temperature is achieved bank 2 stop - bank 3 then alternates on and off to gently maintain the temperature without large fluctuations improving user comfort).

TOLO-E steam generators feature an auto drain down with a self flushing cycle to dump the boiler contents in a controlled manner - at the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the elements before the final drainage helps prolong their useful life.
Electronic controls with a digital display to enable temperatures of 30 to 60 degrees centigrade and time duration 15 to 240 minutes or continual operation with additional keys for a steam room light, keyboard lock, manual drain down etc.Safety features include boil dry protection, thermal overload safety cut out and pressure relief valve.





Applications:



For 24~33 cubic meter residential and commercial steam baths

A daily steam bath is a remarkable way to indulge yourself. It causes the perspiration that is the single healthiest thing you can do for your skin. Stress and negativity quickly dissipate in the soft clouds of intense yet comforting heat. A few minutes of steam daily, in the comfort of your own home, is an opportunity to improve your overall well-being in every way.





Specifications:



  1. Control panel with Digital display
  2. Control panel used the advanced inducing technology
  3. Controls sauna temperature 35 degree to 55 degrees
  4. Controls sauna time 1 minute to 60 minutes or long time
  5. Intelligent to heat by segment
  6. Intelligent to fill water with steam
  7. Intelligent to do a self flushing cycle
  8. Light can be connected to controller
  9. Intelligent to indicate fault with the code
  10. Can pause at working
  11. To show CH can working for long
  12. Intelligent to save two sets of temperature, can individual set time by memory
  13. Automatically shuts down when water level is too low
  14. Temperature high limit switch
  15. Waterproof grade: IPX5
  16. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  17. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  18. We will provide some spare parts to our customer as replacement.





Parameters:



Model

Power KW

Room volume (m³)

Power requirements           50/60Hz

Current  (A)

Power        wire (Copper)          N*mm2

Dimensions  CM

Packing dimensions CM

Gross weight kg

TOLO-E30

3.0

2~4

220-240V~

13.6

3*2.5

42.5*16 *30

54.5*21.5 *42

10.5~11

TOLO-E40

4.0

3~5

220-240V~

18.2

3*2.5

TOLO-E45

4.5

3.5~5.5

220-240V~

20.5

3*2.5

380-415V3N~

6.8

5*1.5

TOLO-E50

5.0

4~6

220-240V~

22.7

3*2.5

380-415V3N~

9.1

5*1.5

TOLO-E60

6.0

5~7

220-240V~

27.3

3*4.0

380-415V3N~

9.1

5*1.5

TOLO-E70

7.0

5.5~8.5

220-240V~

31.8

3*6.0

47.5*18.5 *45

53.5*23 *59

15.6~16.2

380-415V3N~

11.4

5*2.5

TOLO-E80

8.0

7~10

220-240V~

36.4

3*6.0

380-415V3N~

13.6

5*2.5

TOLO-E90

9.0

8~11

380-415V3N~

13.6

5*2.5

16.4~17

TOLO-E105

10.5

9~12

380-415V3N~

15.9

5*2.5

TOLO-E120

12.0

11~14

380-415V3N~

18.2

5*2.5

TOLO-E150

15.0

13~18

380-415V3N~

22.7

5*2.5

51*18.5 *46

56.5*23 *59

17.5~18.5

TOLO-E180

18.0

16~22

380-415V3N~

27.3

5*4.0

TOLO-E225

22.5

21~28

380-415V3N~

34.1

5*6.0

TOLO-E240

24.0

22~30

380-415V3N~

36.4

5*6.0

Notice: TOLO-E steam generator are equiped with auto drain system. 9~12 KW units could be customized to 220~240V on request.







Model

Power KW

Room volume (m³)

Power requirements           50/60

Current (A)

Power        wire (Copper)          N*mm2

Dimensions  CM

Packing dimensions CM

Gross weight kg

TOLO-E90

9.0

8~11

380-415V3N~

3

5*2.5

47.5x18.5x45

53.5x23x59

16.4~17





Competitive Advantage:



Main features: TOLO-E steam generator with a host of advanced features.

  1. Intelligent to heat by segment, fill water with steam, automatic to turn off and wash with pressure to drain.
  2. Light can be connected to illumine, water inflow to magnetize and filtrate etc.
  3. Intelligent to indicate fault
  4. To show CH can working for long
  5. Can pause at working
  6. Intelligent to save two sets of temperature, can individual set time by memory



A steambath is an ancient type of bath, first made popular by the ancient Greeks and Romans. The origins of the steam bath come from the Roman bath, which began during the height of the Roman Empire. Ancient Roman baths served many community and social functions within Roman society. Everyone in Rome used Roman public baths, regardless of socioeconomic status. These Roman baths were supplied by natural hot springs from beneath the ground
