Single / Three Phase Sauna Steam Generator , Steambath Generator CE

China Single / Three Phase Sauna Steam Generator , Steambath Generator CE supplier

Large Image :  Single / Three Phase Sauna Steam Generator , Steambath Generator CE

Product Details:

Place of Origin: China
Brand Name: TOLO
Certification: CE
Model Number: TOLO-E90

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 71.5*44.5*60.5cm /1 set/carton
Delivery Time: 1~2days
Payment Terms: T/T, Paypal, Western Union,
Supply Ability: 2000sets/month
Detailed Product Description
Controller: Waterproof Touch Screen Controller Over-heat Protect: Yes
Leakage Protect: Yes Water Tank Material: #304 Ss



Single / Three Phase Sauna Steam Generator , Steambath Generator CE





Quick Detail:



Type:

Steam sauna

Place of Origin:

Guangdong China (Mainland)

Brand Name:

TOLO

Model Number:

TOLO-E90

Function:

Wet Steam

Feature:

Computer Control Panel

Capacity:

5~8

Main Material:

stainless steel , metal,copper

Power:

9.0kw

voltage:

110v/230v/400v

phase:

single/three

temperature adjustment range:

30-60 centigrade

working time:

15-240 minutes or long time

parts:

controller and nozzle

warranty:

1 year





Description:



1. TOLO-E steam generators have an auto drain down with a self flushing cycle to dump the boiler contents in a controlled manner - at the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the elements before the final drainage helps prolong their useful life.
Electronic controls with a digital display to enable temperatures of 30 to 60 degrees centigrade and time duration 1 to 60 minutes or continual operation with additional keys for a steam room light, keyboard lock, manual drain down etc.Safety features include boil dry protection, thermal overload safety cut out and pressure relief valve.



2.TOLO-E steam generator have middle size to install easily. They have 304 stainless steel water tank, 304 stainless steel heating element with high quality Teflon to prevent water scale.


3.The TOLO-E waterproof touch screen controller has 6 bottoms to set working stages. working time 1-60mins can be adjusted or long ,the setting temperature of the steam will be in 6-60C degrees and can be adjusted between 35-55C degree (95-131F degree).TOLO-E steam generators feature an advanced electronic control with on board diagnostics having a series of LEDs to show each operation of the gernerator. Each generator has 3 groups of heating elements to provide sequential heating (from cold all 3 groups operate for maximum power and rapid heating, when the steam room temperature is almost reached, then group 1 stop, when the required temperature is achieved, then group 2 stop. The group 3 alternates on and off to gently maintain the temperature without large fluctuations improving user comfort).






Applications:



Used in wellness center, bakery(fermentation),hotel,hospitals, nursing homes, rehabilitation centers

For 8~11m³ residential and commercial steam baths





Specifications:





TOLO-E steam generator Parameters:



Model

Power  (kW)

Heating elements

(N*kW)

Voltage/Current      (V/A)

Power wire

(N*mm2)

Breaker

(A)

Room volume

(m3)

Dimension

(L*W*H)                  (mm)

TOLO-E30

3.0

2*1.5

220-240/13.6

3*2.5

16

2~3

425*160*315

TOLO-E40

4.0

2*2.0

220-240/18.2

3*2.5

25

3~5

TOLO-E45

4.5

3*1.5

220-240/20.5

3*2.5

25

3.5~5.5

380-415/6.8

5*1.5

16

TOLO-E50

5.0

2*1.5+1*2.0

220-240/22.7

3*2.5

32

4~6

380-415/9.1

5*1.5

16

TOLO-E60

6.0

3*2.0

220-240/27.3

3*4.0

40

5~7

380-415/9.1

5*1.5

16

TOLO-E70

7.0

2*2.5+1*2.0

220-240/31.8

3*6.0

40

5.5~8

475*185*450

380-415/11.4

5*2.5

16

TOLO-E80

8.0

2*2.5+1*3.0

220-240/36.4

3*6.0

60

6.5~9

380-415/13.6

5*2.5

16

TOLO-E90

9.0

6*1.5

380-415/13.6

5*2.5

16

8~11

TOLO-E105

10.5

3*1.5+3*2.0

380-415/15.9

5*2.5

25

9~12

TOLO-E120

12.0

6*2.0

380-415/18.2

5*2.5

25

11~14

TOLO-E150

15.0

6*1.5+3*2.0

380-415/22.7

5*2.5

32

13~18

510*185*460

TOLO-E180

18.0

9*2.0

380-415/27.3

5*4.0

40

16~22

TOLO-E225

22.5

9*2.5

380-415/34.1

5*6.0

60

19~26

TOLO-E240

24.0

6*2.5+3*3.0

380-415/36.4

5*6.0

60

22~30



Single / Three Phase Sauna Steam Generator , Steambath Generator CE

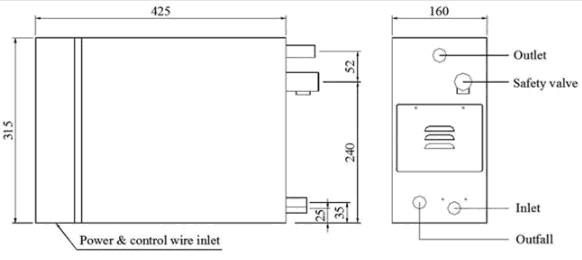

                                  Machine Size: TOLO-E30 TOLO-E40 TOLO-E45 TOLO-E50 TOLO-E60

Single / Three Phase Sauna Steam Generator , Steambath Generator CE

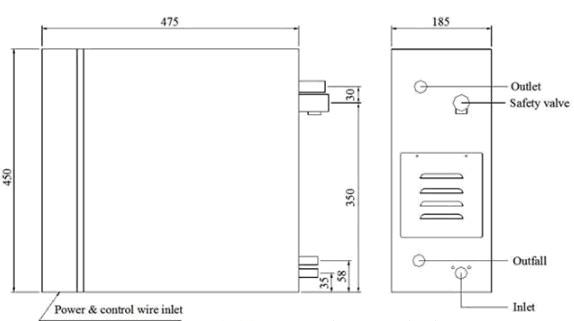

                                      Machine Size : TOLO-E70 TOLO-E80 TOLO-E90 TOLO-E105 TOLO-E120



Single / Three Phase Sauna Steam Generator , Steambath Generator CE

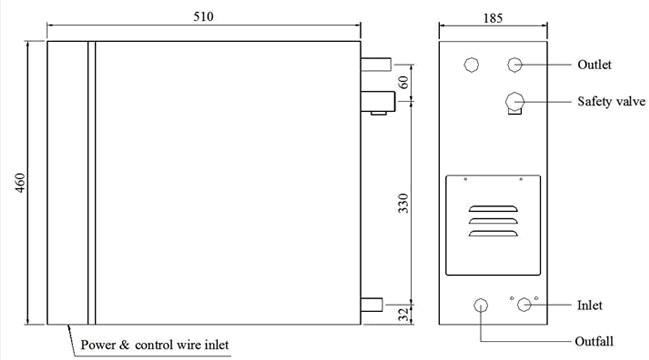

                                         Machine Size: TOLO-E150 TOLO-E180 TOLO-E225 TOLO-E240





Competitive Advantage: CE certificate!



Every TOLO-E steam generator is subjected to 6 strictly controlled tests:
    1. 48 hour continual test for circuit board
    2. Controller is tested for all functions
    3. High voltage test
    4. Earthing resistance test
    5. Power test.
    6. Operational test of every steam generator before packing







The origin of the sauna



A steambath is an ancient type of bath, first made popular by the ancient Greeks and Romans. The origins of the steam bath come from the Roman bath, which began during the height of the Roman Empire. Ancient Roman baths served many community and social functions within Roman society. Everyone in Rome used Roman public baths, regardless of socioeconomic status. TOLO wants to make this life-style go on.





The benefit of steam sauna:



A daily steam bath is a remarkable way to indulge yourself. It causes the perspiration that is the single healthiest thing you can do for your skin. Stress and negativity quickly dissipate in the soft clouds of intense yet comforting heat. A few minutes of steam daily, in the comfort of your own home, is an opportunity to improve your overall well-being in every way.



Single / Three Phase Sauna Steam Generator , Steambath Generator CE
