4.0kw Heat Recovery Three Phase Sauna Steam Generator Auto Drain For Residential Use

China 4.0kw Heat Recovery Three Phase Sauna Steam Generator Auto Drain For Residential Use supplier

Large Image :  4.0kw Heat Recovery Three Phase Sauna Steam Generator Auto Drain For Residential Use

Product Details:

Place of Origin: China
Brand Name: KSA
Certification: CE
Model Number: KSA-N40

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 1 set/carton
Delivery Time: 1-3 workdays
Payment Terms: T/T, Paypal, Western Union,
Supply Ability: 1800 sets
Detailed Product Description



4.0kw Heat Recovery Three Phase Sauna Steam Generator Auto Drain For Residential Use





Quick Detail:



  1. Type: Wet Steam Sauna
  2. control panel: digital and optional
  3. Power output: 4.0kw
  4. voltage: 220V~240V
  5. Current: 18.2A
  6. Main Material: stainless steel tank, galvanizing and powder coated shell
  7. Color: grey or white
  8. phase: single
  9. Shape: Cuboid or round

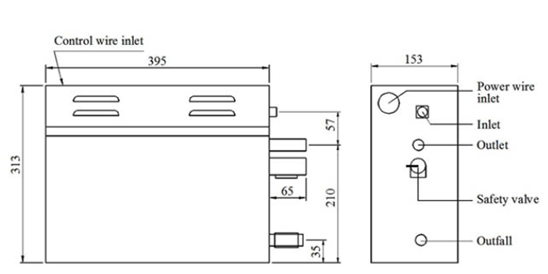

  10. Size: 395*153*313mm
  11. Room volume(cubic meter): 3~5
  12. Usage: steam sauna room
  13. working time: 1~60 minutes or long time
  14. Heating: heat elements
  15. Power source: Electric
  16. Time Setting: 1-60mins
  17. Temperature range to control: 95 F degree~131 F degree
  18. Temperature range to show on control panel: 43 F degree ~140 F degree





KSA-N series steam generator also is with stainless steel water tank, the galvanizing and powder coated shell is anti-corrosive and durable.

It is designed for residential. It has over-pressure protection and auto water feeding system. It is an Economic model.



 220v - 230v Grey Sauna Steam Generator Cuboid for residential



Description:



This KSA-N Economic steam generator has 4.0kw, 5.0kw,6.0kw,7.0kw,8.0kw and 9.0kw for your choice.

The Economic steam generator is specialized for residential bath room or small business which only requires simple functions. Normally the Economic steam generator is less than 9KW, 220-240V single phase and equipped with manual drain valve. Customization such as larger power size (more than 6KW), 380-415V three phases power supply or auto drain function could be realized on customers' requirement. The reliable and efficient Economic steam generator is a best-buy for customers with budget.

KSA-N could equip with 2 kinds of control system.When KSA-N equipped with R30, a safety timer will automatically switch the generator off after 45 minutes. If equipped with TM60A, both the remaining working time and room temperature will be displayed on the panel. You could set temperature to the range of 35-55 C(95-131 F), and working time to 1~60 minutes or "CH" non-stop mode. To eliminate mineral building up, please manually drain the steam generator frequently.



The Economic steam generator features auto water feeding system, over-pressure protection and etc. A perfect choice for residential bath room or small business.





Applications:



For 2~4m³ residential and small business steam baths.





Parameters:



Model

Power kW

Power supply (50/60Hz)

Power wire   (copper) N*mm2

Dimensions  cm

Packing size  cm

Gross weight  kg

Voltage V

Current   A

KSA-N4C

4.0

220-240V~

18.2

3*2.5

39.5*15.3*31.3

53.5*21*41

9

380-415V3N~

6.1

5*1.5

KSA-N5C

5.0

220-240V~

22.7

3*2.5

380-415V3N~

7.6

5*1.

KSA-N6C

6.0

220-240V~

27.3

3*4.0

380-415V3N~

9.1

5*1.5

KSA-N7C

7.0

220-240V~

31.8

3*6.0

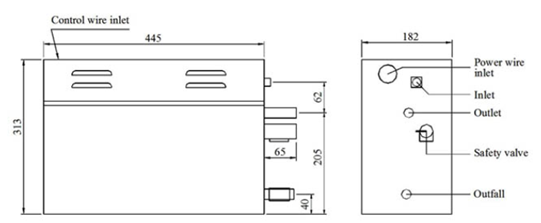

44.5*18.2*31.3

53.5*21*41

11

380-415V3N~

11.4

5*2.5

KSA-N8C

8.0

220-240V~

36.4

3*6.0

380-415V3N~

13.6

5*2.5

KSA-N9C

9.0

220-240V~

40.9

3*10.0

380-415V3N~

13.6

5*2.5

Notice :KSA-N series Economic steam generators come with one group of heating elements and standard manual drain valve. Auto drain valve could be installed on request.



4.0kw Heat Recovery Three Phase Sauna Steam Generator Auto Drain For Residential Use

KSA-N40 KSA-N50 KSA-N60



4.0kw Heat Recovery Three Phase Sauna Steam Generator Auto Drain For Residential Use

KSA-N70 KSA-N80 KSA-N90

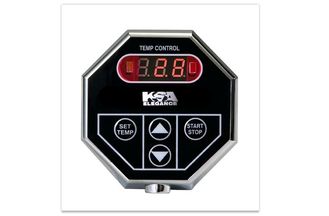

  1. Control panel with Digital display
  2. Control panel used the advanced inducing technology
  3. Controls sauna temperature 35 degree to 55 degrees
  4. Controls sauna time 1 minute to 60 minutes or long time
  5. Automatically shuts down when water level is too low
  6. Temperature high limit switch
  7. Waterproof grade: IPX5
  8. Auto protection: boil dry protect, pressure balancing valve,
  9. Auto function: auto water inlet ,auto power off





Competitive Advantage:



Factory Direct!

Stainless steel elements for long life.

Commercial!

Durable!
