Mirror-polished stainless steel Commercial Steam Generator 4kw 230v for steam bath

China Mirror-polished stainless steel Commercial Steam Generator 4kw 230v for steam bath supplier

Large Image :  Mirror-polished stainless steel Commercial Steam Generator 4kw 230v for steam bath

Product Details:

Place of Origin: China
Brand Name: KSA
Certification: CE
Model Number: KSA-S40

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 1 set/carton
Delivery Time: 1-3 workdays
Payment Terms: T/T, Paypal, Western Union,
Supply Ability: 1800 sets
Detailed Product Description
Power: 4.0kw Voltage: 220~240V
Material: Stainless Steel Phase: Single Phase
Power Source: Electric Type: Wet Steam Sauna
Usage: Steam Sauna Room Shape: Cuboid
Color: Stainless Steel

Mirror-polished stainless steel KSA-S40 steam generators 4.0kw/220v-230v / 50~60Hz with fault diagnosis for steam bath





Quick Detail:



  1. Type: Wet Steam Sauna
  2. control panel: digital and optional
  3. Power output: 4.0kw
  4. voltage: 220~240V
  5. Main Material: stainless steel tank and Mirror-polished stainless steel shell
  6. Color: stainless steel
  7. Current: 18.2A
  8. phase: 1
  9. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  10. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  11. Shape: Cuboid

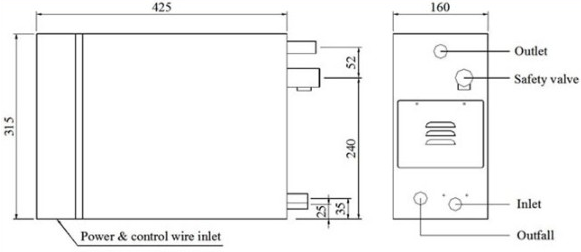

  12. Size: 405x150x280mm
  13. Room volume(cubic meter):3~5
  14. Usage: steam sauna room
  15. working time: 1~60 minutes or long time
  16. Heating: heat elements
  17. Power source: Electric
  18. Time Setting: 1-60mins
  19. Temperature range to control: 95 F degree~131 F degree
  20. Temperature range to show on control panel: 43 F degree ~140 F degree





KSA-S steam generators feature an advanced electronic control with fault diagnostics having different code to show each situation of the generators. Safety features include boil dry protection, thermal overload safety cut out and pressure relief valve.





Mirror-polished stainless steel shell luxurious appearance! KSA-S steam generators have middle size to install easily. They have 304 stainless steel water tanks, 304 stainless steel heating element with high quality Teflon to prevent water scale.

KSA-S series steam generator has KSA-S 3.0kw, KSA-S 4.0kw, KSA-S 5.0, KSA-S 6.0kw, KSA-S 7.0kw, KSA-7.5kw, KSA-S 8.0kw, KSA-S 9.0kw, KSA-10.5kw, KSA-S 12.0kw, KSA-S 15.0kw, KSA-S 18.0kw, KSA-S 22.0kw, KSA-S 24.0kw.



Mirror-polished stainless steel steam generators 4kw 230v for steam bath



Description:



The KSA-S steam generator is with new electronic touch screen control kit and new mirror-polished stainless steel 304# steam head. Full body made of stainless steel, durable and luxurious.



1. The KSA Elegance touch screen control kit has 6 bottoms to set working stages. Working time 1-60mins can be adjusted or long , the setting temperature of the steam will be in 6-60C degrees and can be adjusted between 35-55C degree (95-131F degree).KSA-S steam generators feature an advanced electronic control with fault diagnostics having different code to show each situation of the generators. Safety features include boil dry protection, thermal overload safety cut out and pressure relief valve.

2. KSA-S steam generators have an auto drain down with a self flushing cycle to dump the boiler contents in a controlled manner. At the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the elements before the final drainage helps prolong their useful life.


3. Each KSA-S steam generator has 3 groups of heating elements to provide heating by segment. From cold all 3 groups operate for maximum power and rapid heating, when the steam room temperature is almost reached, then group 1 stop, when the required temperature is achieved, then group 2 stop. The group 3 alternates on and off to gently maintain the temperature without large fluctuations improving user comfort.


4. The origins of the steam bath come from the Roman bath, which began during the height of the Roman Empire. A steambath is an ancient type of bath, first made popular by the ancient Greeks and Romans. Ancient Roman baths served many community and social functions within Roman society. Everyone in Rome used Roman public baths, regardless of socioeconomic status.





Applications:



For 3~5m³ residential and commercial steam baths

A few minutes of steam daily, in the comfort of your own home, is an opportunity to improve your overall well-being in every way.

A daily steam bath is a remarkable way to indulge yourself. It causes the perspiration that is the single healthiest thing you can do for your skin. Stress and negativity quickly dissipate in the soft clouds of intense yet comforting heat.





Specifications:



KSA-S series steam generator has KSA-S 3.0kw, KSA-S 4.0kw, KSA-S 5.0, KSA-S 6.0kw, KSA-S 7.0kw, KSA-7.5kw, KSA-S 8.0kw, KSA-S 9.0kw, KSA-10.5kw, KSA-S 12.0kw, KSA-S 15.0kw, KSA-S 18.0kw, KSA-S 22.0kw, KSA-S 24.0kw.





Parameters:



Model

Power KW

Room volume (m³)

Power requirements           50/60Hz

Current (A)

Power        wire (Copper)          N*mm2

Dimensions  CM

Packing dimensions CM

Gross weight kg

KSA-S40

4.0

3~5

220-240V~

18.2

3*2.5

42.5*16*30

54.5*21.5*42

10.5~11



Mirror-polished stainless steel Commercial Steam Generator 4kw 230v for steam bath

KSA-S40





  1. Control panel with Digital display
  2. Control panel used the advanced inducing technology
  3. Controls sauna temperature 35 degree to 55 degrees
  4. Controls sauna time 1 minute to 60 minutes or long time
  5. Intelligent to heat by segment
  6. Intelligent to fill water with steam
  7. Intelligent to do a self flushing cycle
  8. Light can be connected to controller
  9. Intelligent to indicate fault with the code
  10. Can pause at working
  11. To show CH can working for long
  12. Intelligent to save two sets of temperature, can individual set time by memory
  13. Automatically shuts down when water level is too low
  14. Temperature high limit switch
  15. Waterproof grade: IPX5
  16. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  17. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  18. We will provide some spare parts to our customer as replacement.





Competitive Advantage:



Every KSA-S steam generator is subjected to 6 strictly controlled tests:
    1. 48 hour continual test for circuit board
    2. Controller is tested for all functions
    3. High voltage test
    4. Earthing resistance test
    5. Power test.
    6. Operational test of every steam generator before packing

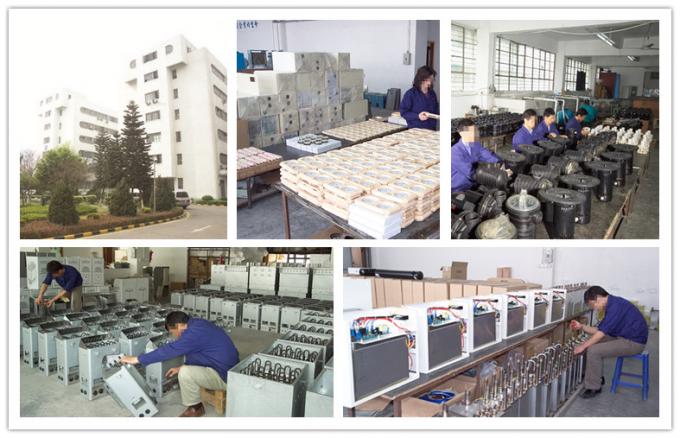

Shenzhen TOLO Leisure Equipment Factory provides each kilowatt you required. We are the real factory to produce steam and sauna products more than 10 years. The best price will help you enlarge your market.

Mirror-polished stainless steel Commercial Steam Generator 4kw 230v for steam bath
